Clamp Type(Curved Jaw)
* Coupling assembled by pressing a polyurethane sleeve into hubs on both sides
* Can absorb vibration, parallel, angular misalignments and shaft end-play
* Resistance to oil and electrical insulation
* Identical clockwise and anticlockwise rotational characteristics
* Two different hardness sleeves are available
* Clamp type
Ordering Information

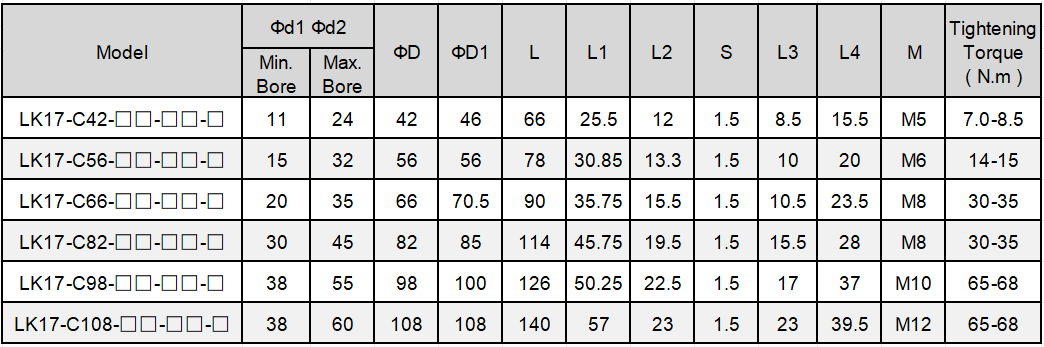

Dimensions(mm)

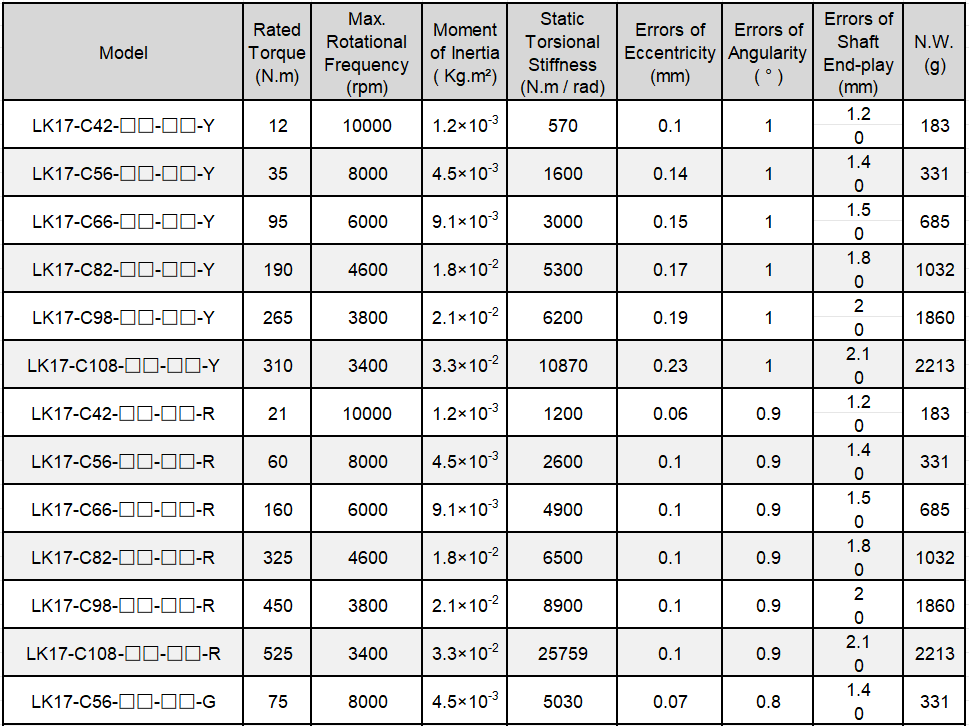

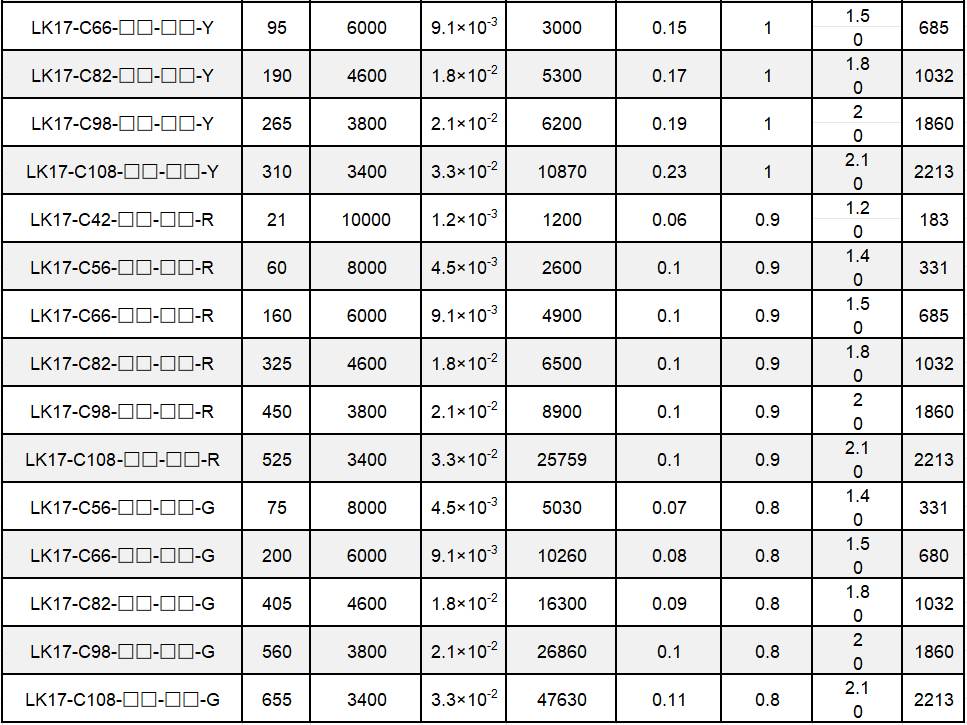

Specification(mm)
Downloads
Here you will find order examples and operating instructions for download in PDF format.
LK17 Jaw Coupling with Clamping Type.pdf
Other Curved Jaw Coupling
|
|
|
|
|
|
|
|
|
|
